Proper Thru-Hull Bonding




Proper Thru-Hull Bonding Corrosion Test Meter Panel

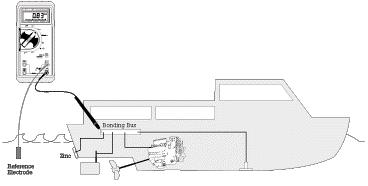

The first picture (above left) shows a method of bonding all thru-hulls that are eventually connected with the engine ground in order to prevent galvanic corrosion and possible fitting failure that may lead to flooding or even a vessel total loss. Do not think or believe (from various other sources) that because you have a fiberglass vessel you are immune (see bottom picture) from this problematic situation. The various metals (brass, bronze, steel, ...) that make up the thru-hulls and attached fittings are in essence creating a small battery due to the fact you have many different metallic compounds immersed in salt water. Multiply this by the many thru-hulls installed. Over time, the induced corrosion will erode the metal away unless it is bonded. Correct vessel bonding is overlooked too many times until extensive damage occurs and is realized. The cost of repair is much more significant than ensuring you have a properly bonded vessel. Contact ZRD for full details.

The second picture (above right) shows the front panel face of a dedicated galvanic meter with the scales that apply (using its specific reference electrode) to various metal types and the readings that would give protection.

Probe connection to meter Probe connection to meter
Meter Connections Reversed

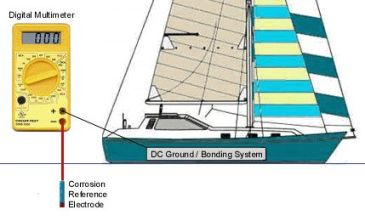

You may use a standard inexpensive electronic meter (shown in the pictures above) if you have access to or purchase a Silver/Silver Chloride probe (below left picture). Attach one end of the probe to the positive connection on the meter and the other end is placed in the sea (salt) water. The negative lead from the meter is connected to the item being checked. If the connections are reversed, the reading will be negative (as some prefer to see it displayed), but the absolute value is what is needed to determine the level of protection. Using a GUEST Model 2435 Ag/AgCl sensor, its typical values are provided in a table (below right table) as a guide.

Silver-SilverChloride Plug
Status
Freely Eroding under:
Protected above:
Over protected above:
Damage above:
  Bronze
0.50v
0.50v
0.70v
1.25v
Steel
0.75v
0.75v
0.95v
1.20v
Aluminum
0.85v
0.85v
1.05v
1.20



Depending on the specific reference electrode used, typical voltage values are provided above. Each underwater metal is protected from corrosion when the protection system is able to induce and maintain a negative shift (raise metal's potential value) of at least 0.20V above its freely existing (non-protected) value. An additional shift results in overprotection and may cause paint to peel from a metal hull, decreased effectiveness of anti-fouling paints and barrier coatings on steel or fiberglass hulls, or chemical damage to a wooden hull.

Technical Discussion/Description

Galvanic corrosion occurs when two dissimilar metals (Galvanic Series below) are connected together electrically in the presence of a conductive electrolyte. An electrical potential is generated. Atoms in the less noble metal give up their electrons to the more noble metal and are released to flow (corrode) into the electrolyte in the form of positively charged ions. If a voltmeter is placed in the circuit, it will measure the potential between the anode and cathode of the cell. This will provide a measurement of the tendency to corrode. Active metals like zinc are commonly used to protect more noble metals. If the two metals are immersed in the same electrolyte and deliberately connected by an electrical "bonding" system, the zinc will give up it's electrons to protect the more noble metal. In this configuration, the zinc is called the anode and the protected metal is called the cathode.

For testing purposes, the item being tested acts as one half of the cell and the other half is the reference half-cell. The silver-silver chloride half-cell consists of silver immersed in a solution of silver chloride, which is in contact with sea water via a porous plug. If the item being tested is corroding, positive ions will be in solution leaving behind electrons in that item. When the half-cell is placed into this area of positive ions, the distribution of ions inside the porous plug are polarized, in such a way that, silver ions migrate to the silver rod in the middle, and chloride ions migrate towards the porous membrane. This creates an overall positive charge in the immediate vicinity of the silver rod. Since the half-cell is connected, a galvanic cell is again set up. A voltmeter is connected to measure the potential differenece between them. The potential of the item with respect to the half-cell is always quoted as a negative value.


GALVANIC SERIES OF METALS AND ALLOYS

CORRODED END (ANODIC OR LEAST NOBLE)

MAGNESIUM
MAGNESIUM ALLOYS
ZINC
ALUMINUM 5052, 3004, 3003, 1100, 6053
CADMIUM
ALUMINUM 2117, 2017, 2024
MILD STEEL (1018), WROUGHT IRON
CAST IRON, LOW ALLOY HIGH STRENGTH STEEL
CHROME IRON (ACTIVE)
STAINLESS STEEL, 430 SERIES (ACTIVE)
302, 303, 321, 347, 410,416, STAINLESS STEEL (ACTIVE)
NI - RESIST
316, 317, STAINLESS STEEL (ACTIVE)
CARPENTER 20CB-3 STAINLESS (ACTIVE)
ALUMINUM BRONZE (CA 687)
HASTELLOY C (ACTIVE) INCONEL 625 (ACTIVE) TITANIUM (ACTIVE)
LEAD - TIN SOLDERS
LEAD
TIN
INCONEL 600 (ACTIVE)
NICKEL (ACTIVE)
60 NI-15 CR (ACTIVE)
80 NI-20 CR (ACTIVE)
HASTELLOY B (ACTIVE)
BRASSES
COPPER (CA102)
MANGANESE BRONZE (CA 675), TIN BRONZE (CA903, 905)
SILICONE BRONZE
NICKEL SILVER
COPPER - NICKEL ALLOY 90-10
COPPER - NICKEL ALLOY 80-20
430 STAINLESS STEEL
NICKEL, ALUMINUM, BRONZE (CA 630, 632)
MONEL 400, K500
SILVER SOLDER
NICKEL (PASSIVE)
60 NI- 15 CR (PASSIVE)
INCONEL 600 (PASSIVE)
80 NI- 20 CR (PASSIVE)
CHROME IRON (PASSIVE)
302, 303, 304, 321, 347, STAINLESS STEEL (PASSIVE)
316, 317, STAINLESS STEEL (PASSIVE)
CARPENTER 20 CB-3 STAINLESS (PASSIVE), INCOLOY 825NICKEL - MOLYBDEUM - CHROMIUM - IRON ALLOY (PASSIVE)
SILVER
TITANIUM (PASS.) HASTELLOY C & C276 (PASSIVE), INCONEL625(PASS.)
GRAPHITE
ZIRCONIUM
GOLD
PLATINUM


PROTECTED END (CATHODIC OR MOST NOBLE)

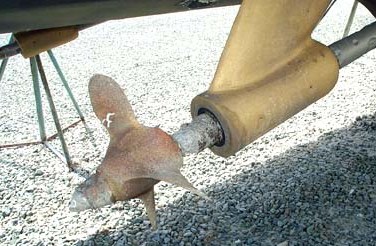

  Prop and shaft showing Galvanic Corrosion

Example of non or improper boat bonding due to incorrect zinc attachment
