ZRD High Output Replacement (First) Alternators



Note:
For a High Output 2nd (Dual) Alternator (not OEM replacement alternator) information, click here.

Mix & Match Choices (dozens of combinations) from following List
  A) Output: 12vdc - 94amp For post OEM warranty installations,
      120 amp dual sheave versions are available by special order.

  B) Voltage Regulation: ** Single Stage Internal or Three Stage External
  C) Mounting Case Styles: 3.15", 2", or 1"
  D) 24vdc - 50amp also available (3.15" or 2" mounting only)
  E) Call for Pricing

Specifications
• Standard Case Size
• Clockwise Rotation
• Negative Ground
** 3-wire hook up w/tach lead (same as O/E with Internal Single Stage Regulator)

FOR USE WITH DIESEL APPLICATIONS ONLY
Internal
or External
w/o TSP
☚   Regulation ** External
including
Regulator
TSP Kit
$869.95

$478.47

$39.95

$518.42


$31.11

$549.53
List Price

Sale Price (Over 50% < OEM)

S & H

Total w/o FL Sales Tax
(shipment outside FL)


If FL Sales Tax Required

Total with FL Sales Tax
(shipment inside FL)
$1,600.28

$1,171.15

$39.95

$1,171.15


$70.27

$1,241.42

Features
• Dual Foot 3.15 inch mount
• Replaces Yanmar #'s
    128271-77200, 119573-77201
    129772-77200, 129470-77200
• Replaces Hitachi #'s LR155-20, LR180-03
• Replaces Nippondenso # 101211-994
  Features
• Single Foot 2" mount
Features
• Single Foot 1" mount
• Multiple Adjustment Arm attach points

ZRD High Output (12vdc-94amp or 24vdc-50amp), Modified Hitachi alternator design allowing for 3 Stage External Regulation, 3.15 inch Mount ZRD High Output alternator 3.15 inch mounting dimensions ZRD High Output (12vdc-94amp or 24vdc-50amp), Hitachi / Nippondenso OEM Replacement Alternator, Internally Regulated, 3.15 inch Mount   ZRD High Output (12vdc-94amp or 24vdc-50amp), allowing for 3 Stage External Regulation, 2 inch Mount Replacement Alternator ZRD High Output alternator 1 and 2 inch mounting dimensions ZRD High Output (12vdc-94amp or 24vdc-50amp), allowing for 3 Stage External Regulation, 1 inch Mount Replacement Alternator

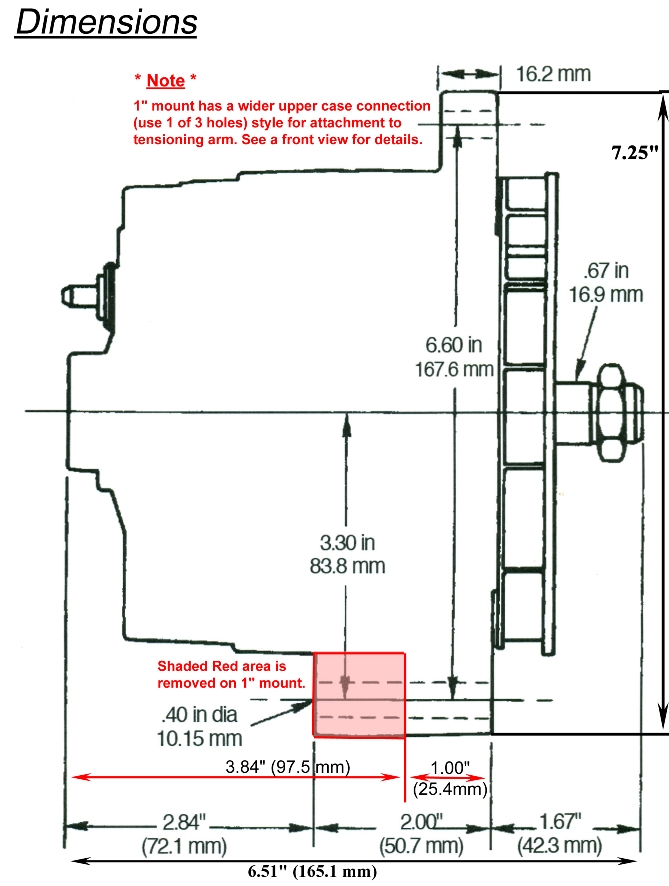

Click to enlarge 3.15" mounting   Click to enlarge 1" & 2" mounting

The 3.15 inch foot mount alternator is designed to be a direct replacement for a supplied Hitachi / Nippondenso alternator. It fits most Yanmars, Perkins and many small diesel auxiliary engines. For engines that do not use the 3.15 inch mount, the High Output 94 amp alternator is also shown above with the available 2 inch or 1 inch foot mounts.

The 3.15 inch mount is shown above in both the externally and internally regulated versions. The 2 inch and 1 inch mounts are shown in the externally regulated versions. Depending on mounting style, the above alternators may be available in 12vdc - 94amp or 24vdc - 50amp outputs. There are dozens of combinations possible to fit your solution needs.

To aid in simplifying your Solution needs and decision, in all 12vdc solutions the alternators are all the same price. The only additional cost in externally regulated solutions is the added cost of an external regulator, sensors, and spike protection.

**Special Note:     Specify desired version - Single Stage Internal or Three Stage External regulation. If external version desired, customer needs to have or purchase an external regulation package consisting of external regulator, sensors, and spike protector. If you already have a proper external regulator package, the price of an externally regulated alternator solution is the same as an internally regulated solution.



For Planning Purposes

First Alternator Dimensional Checks


  First Alternator Replacement or Upgrade Sizing Checks

If possible, send us a photo of your actual engine (front view, side view - alternator side, & overhead view), existing alternator (close up of front, side, overhead, rear, mounting foot) with the actual dimensions (A, B, C, D, R, S) shown below. Using the example drawings on the left, measure your alternator dimensions (A, B, C, D) and clearances (R, S).

•   Dimension "A" is the overall size of the existing alternator from side to side.
•   Dimension "B" is the overall size of the existing alternator from top to bottom.
•   Dimension "C" is the overall size of the existing alternator from front to rear.
•   Dimension "D" is size / type of the mounting foot (1 or 2 inch, or a double foot with 3.15 inches in between them).

•   Dimension "R" is the free space at the back of the alternator until it "runs into" something on the engine - possibly a heat exchanger.
•   Dimension "S" is the space between the side of the alternator and the engine. It is when the alternator (without fan belt even on is at its closest point to the engine as the adjustment bolt slides in the adjustment arm to its shortest length. This position may require a belt shorter than your existing belt if your existing belt is too long or stretched out.



  ZRD High Output alternator (12vdc-94amp) amperage output curve   ZRD High Output alternator (24vdc-50amp) amperage output curve

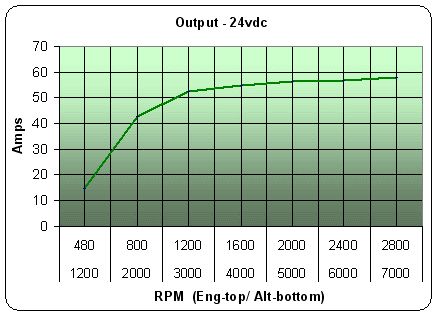

  The Output Curve for the 12vdc - 94amp alternator is shown above on the left in the Blue Graph. The Output Curve for the 24vdc - 50amp alternator is shown above on the right in the Green Graph. The RPM shown on the X axis for both graphs is shown using a typical 2.5 to 1 ratio of Alternator to Engine RPM. The Engine RPM is shown above the corresponding Alternator RPM.


• Specifications, availability, and pricing are subject to change


Hitachi / Nippondenso replacement alternator installed on a Yanmar JH series engine - 3 inch Mount, modified to allow Three Stage External regulation
Put Your Engine HereTM


The picture above shows a ZRD ZCW3E1210 Hitachi / Nippondenso direct replacement alternator (12vdc - 94amp, 3.15 inch mount, Three Stage Externally Regulated version) installed on a Yanmar JH series engine. For maore details on Dual Alternator solutions, refer to the Alternator tab under Products.
